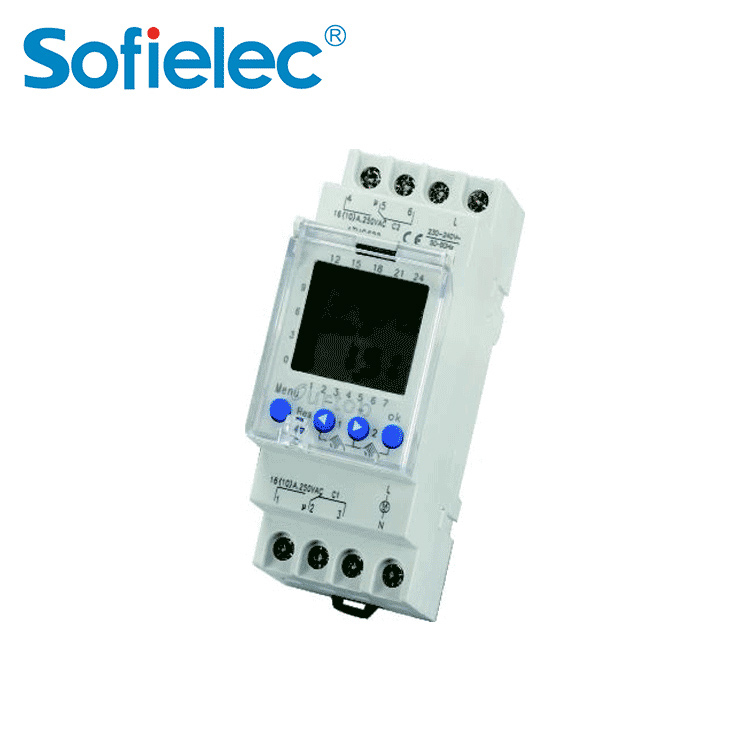

ATHC series Digital Programmable Time switch

ATHC series Digital Programmable Time switch
ATHC series Digital Programmable Time switch
ATHC series Digital Programmable Time switch

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.

Categories Time Switch
Model ATHC611 ATCH622
Width 2 modules (36mm)
Frequency 50-60 Hz
Installation type DIN rail
Power reserve 3 years (lithium battery)
Switching contact 1 change over switch, 2 change over switch
Switching capacity at 250vac, cosφ=1 16A
Switching capacity at 250vac, cosφ=0. 6 10A
Incandescent/halogen lamp load 2300W
Energy saving lamps 22x7W, 18x11W, 16x15W, 16x20W, 14x23W
Shortest switching times 1 minute (pulse/cycle 1 s)
Time accuracy ≤2sec/ day (25°C)
Power consumption 5VA (max)
Mechancally ≤± 2 Sek./day (quartz)
Ambient humidity 35~ 85%rh
Ambient temperature -10~+45℃

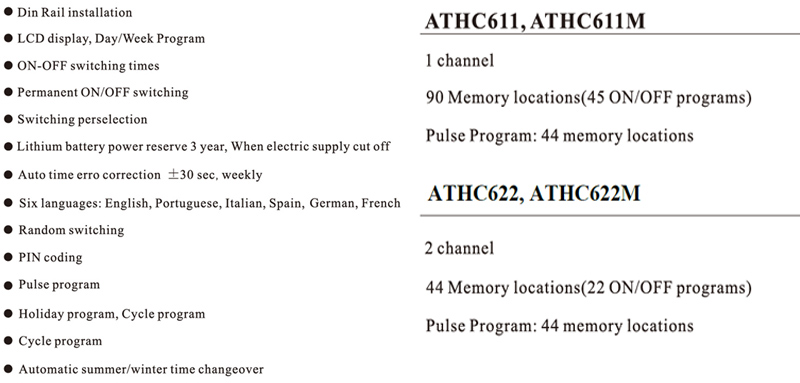

Description

DescriptionDin Rail installation,LCD display,Day/Week Program,ON-OFF switching times,Permancnt ON/OFF switching,Switching Perselection

Type Number of channels Operating Voltage Programs
ATHC611 1 220VAC

90 Memory locations

(45 NO/OFF programs)

Pulse Program : 44 memory locations

ATHC611M 12-240VAC/DC
ATHC622 2 220VAC

44 Memory locations

(22 NO/OFF programs)

Pulse Program : 44 memory locations

ATHC622M 12-240VAC/DC

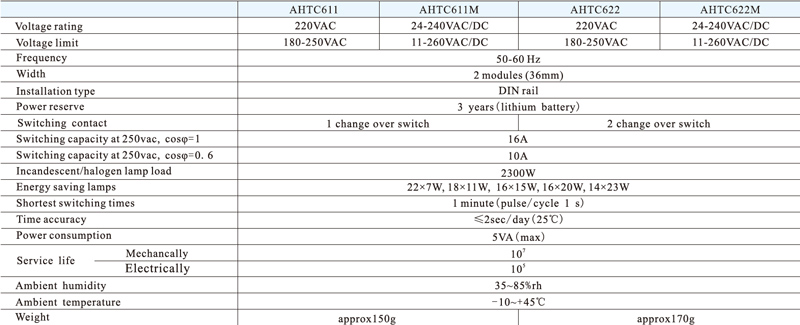

Technical date

Technical date:Voltage rating,Voltage limit,Frequency,width,Installation type

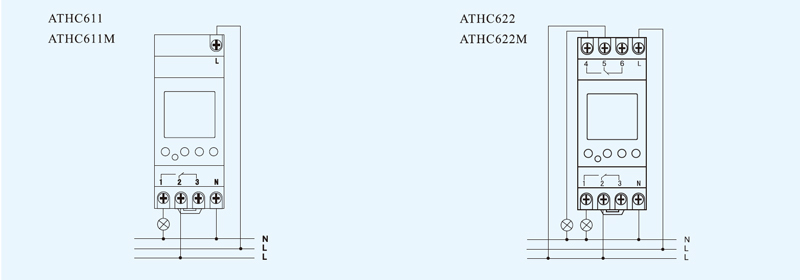

Connection example

Connection example

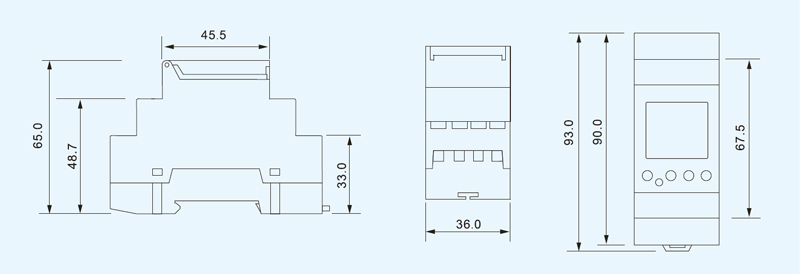

Dimensions

Dimensions
