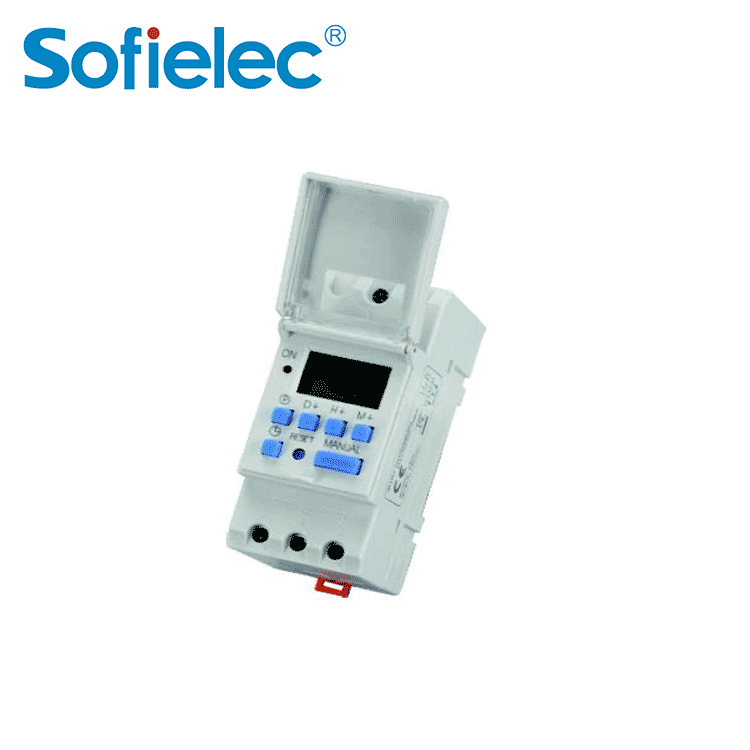

| Categories | Time Switch |
| Model | ATHC15 |
| Width | 2 modules (36mm) |
| Frequency | 50-60 Hz |
| Installation type | DIN rail |
| Power reserve | 3 years (lithium battery) |
| Switching contact | 1 change over switch, 2 change over switch |
| Switching capacity at 250vac, cosφ=1 | 16A |
| Switching capacity at 250vac, cosφ=0. 6 | 10A |
| Incandescent/halogen lamp load | 2300W |
| Energy saving lamps | 22x7W, 18x11W, 16x15W, 16x20W, 14x23W |
| Shortest switching times | 1 minute (pulse/cycle 1 s) |
| Time accuracy | ≤2sec/ day (25°C) |
| Power consumption | 5VA (max) |
| Mechancally | ≤± 2 Sek./day (quartz) |
| Ambient humidity | 35~ 85%rh |
| Ambient temperature | -10~+45℃ |
Common function
● DIN RAIL installation
● LCD display,Day/week program
● 18 ON/OFF programs
● 18times pulse programs
● Lithium battery power reserve 3 year, when electric supply cut off
● Auto time erro correction ±30 sec,weekly
● Count down:1 sec-99 min 59 sec
● Pulse :1 sec-59 min 59 sec
● Dispaly :LCD

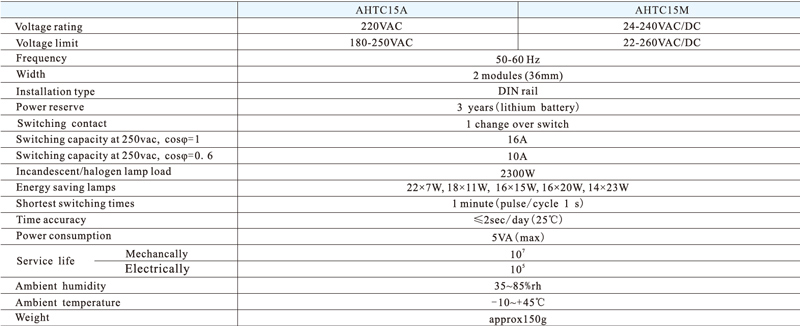

Technical date

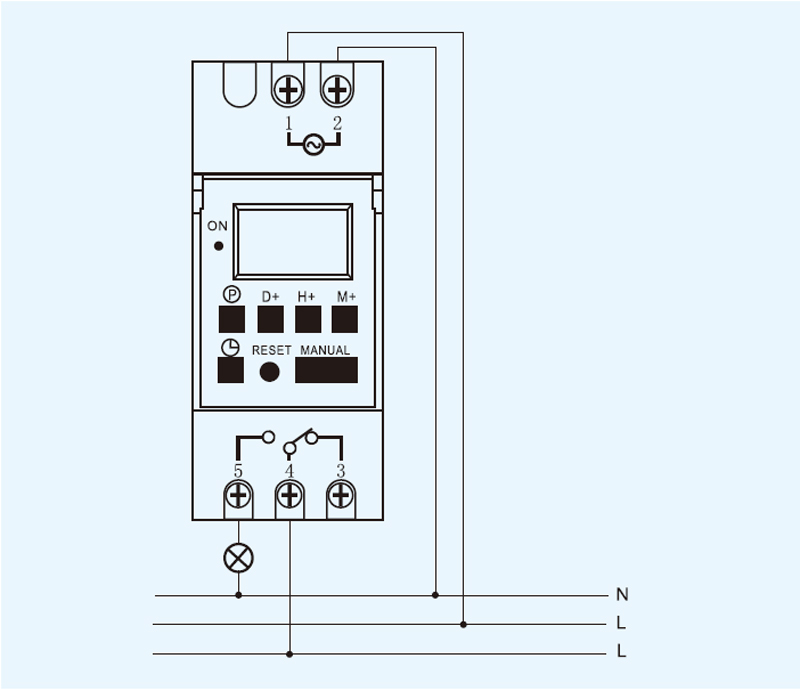

Connection example

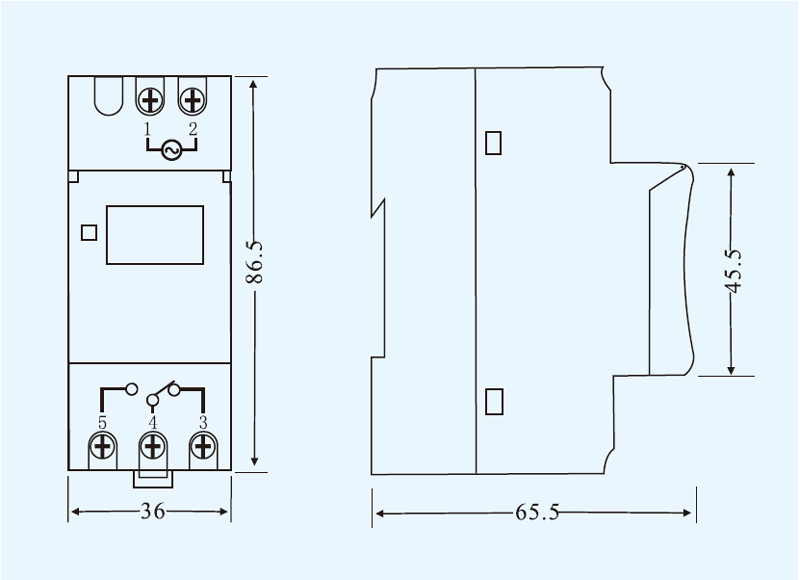

Dimensions
