ATS16 Electronic staircase timer 16A Multi-function

ATS16 Electronic staircase timer 16A Multi-function
ATS16 Electronic staircase timer 16A Multi-function

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.

Categories Time Switch
Model ATS16
Contact configuration 1NO(SPST-NO)
Rated current/Maximum peak current 16A
Rated voltage/Maximum switching voltage 230V AC
Rated load AC1 3700 VA
Rated load Ac15 (230 V AC) 750 VA
Minimum switching load mW (V/mA) 1000(10/10)
Standard contact material AgSnO2
Nominal voltage (UN) 230V AC(50/60Hz)
Rated power 3VA/1.2W
Delay setting 0..20min
Maximum impulse duration continuous
Ambient temperature range -10~ +60
Function

Range of electronic staircase timers

● 18mm wide

● Time setting from 30 seconds to 20 minutes

● "Zero crossing"load switching

● "Switch-off early warning"

● Suitable for 3 or 4 wire systems,with automatic recognition

● LED status indicators

● Cadmium free contact material

● Can be used with illuminated push-buttons

● "Blade+cross"-both flat blade and cross head screw drivers can be used to adjust the function selector,the timing trimmer

● 35mm rail mounting clip

● 6functions

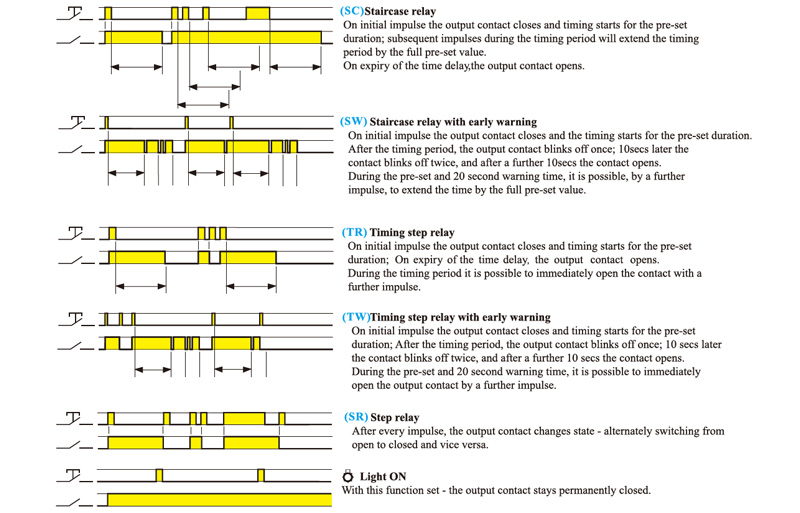

   SC=Staircase relay

   SW=Staircase relay with early warning

   TR=Timing step relay

   TW=Timing step relay with early warning

   SR=Step relay

   Light ON

Technical date
Contact specification
Contact configuration 1NO(SPST-NO)
Rated current/Maximum peak current 16A
Rated voltage/Maximum switching voltage 230V AC
Rated load ACI 3700 VA
Rated load Acl5 (230 V AC) 750 VA
Nominal lamp rating: 230V incandescenthalogen 3000w
fluorescent tubes with electronic ballast 1500W
fluorescent tubes with electromechanical ballast 1000W
CFL 600W
230V LED 600W
LV halogen or LED with electronic ballast 600W
LV halogen or LED with electromechanical ballast 1500W
Minimum switching load    mW (V/mA) 1000(20/20)
Standard contact material AgsnO2
Supply specification
Nominal voltage (UN) 230V AC(50/60Hz)
Rated power 3VA/1.2W
Operating range       AC (50 H2) (0.8...1.1)UN
Technical data
Electrical life at rated load in AC1      cycles 1×10
Delay setting 0.5..20min
Max no. of iluminated push-button(≤1 mA) 30
Maximum impulse duration continuous
Ambient temperature range -10~+60



Functions

Functions:Stairase relay,Staircase relay with early warning,Timing step relay,Timing step relay with early warning,Step relay,Light ON

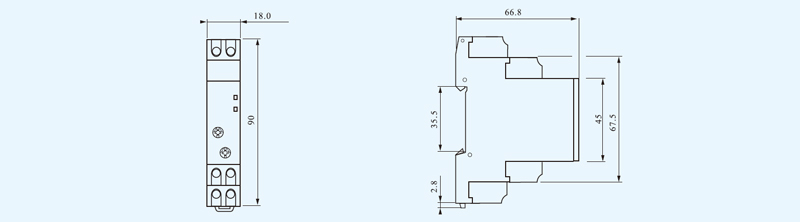

Dimensions

Dimensions

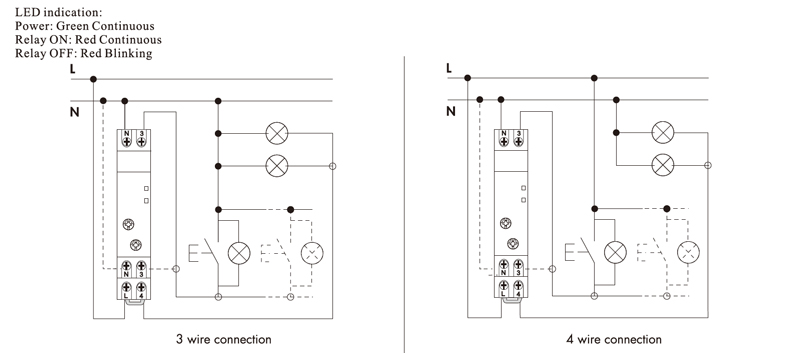

Wiring Diagrams

Wiring Diagrams:LED indication:Power:Green Continuous,Relay ON:Red Continuous,Relay OFF:Red Blinking
