| Categories | Time Switch |
| Model | SUL180 |
| Voltage rating | 230VAC 50/60Hz |
| Voltage limit | 200-240VAC |
| Width | 1 Modules |
| Installation type | DIN-rail |
| Program | Daily(24 hours) program |
| Power reserve | 72 hours |
| Shortest switching time | 15 minutes |
| Programmable every | 15 minutes |
| Time accuracy | ≤土1 s/day(Quartz) |
| Power consumption | 1 VA |
| Ambient temperature | - 20℃ ~ +55℃ |
Common function
●Analogue time switch, 1 channel
●daily/24 hours program
●96 switching segments
●DIN rail installation
●Synchronised with mains
●Shortest switching time:15 Minutes
●With power reserve 72 hours
●SUL190a with battery reserve
●SUL160a without battery reserve
Technical date
●Voltage rating:230VAC 50/60Hz
●Voltage limit:200-240VAC
●Width:1 Modules
●Installation type:DIN-rail
●Program:Daily(24 hours)program
●Pwoer:72hours
●Max.switching capacity at 250vac,cos =1： 16A
Max.switching capacity at 250 vac, cos =0.6:4A
●Shortest switching time:15minutes
●Programmable every :15minutes
●Time accuracy:≤±1 s/day(Quartz)
●Power consumption :1 VA
● Ambient temperature:-20℃~+55℃
●DuoFix spring terminals
●Manual switch with 3 positions:Permanent ON/AUTO/Permanent OFF

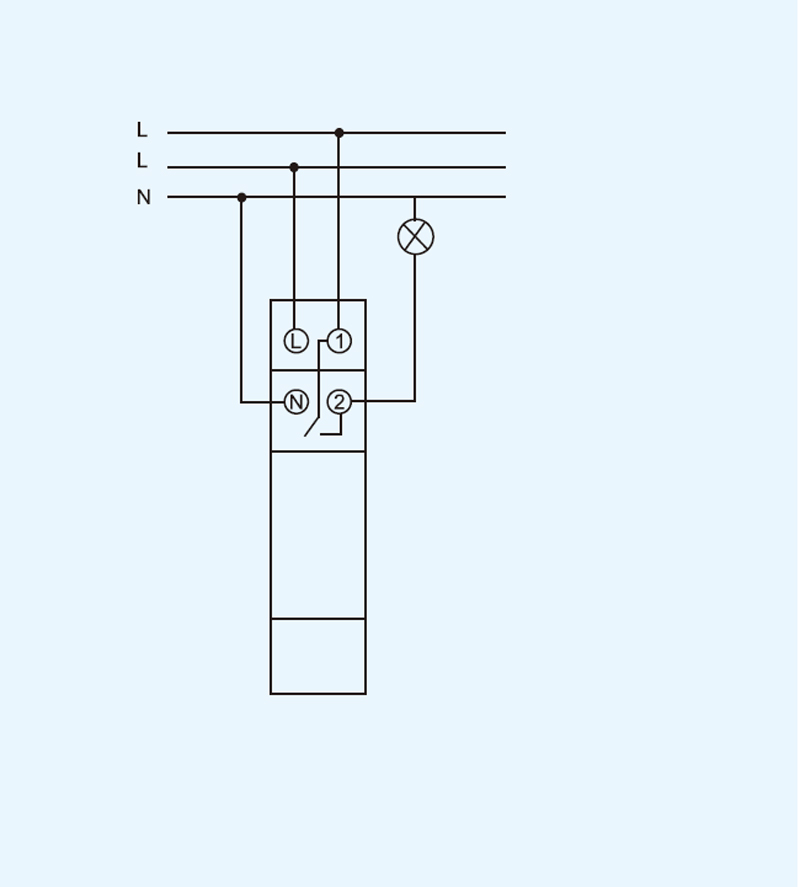

Connection example

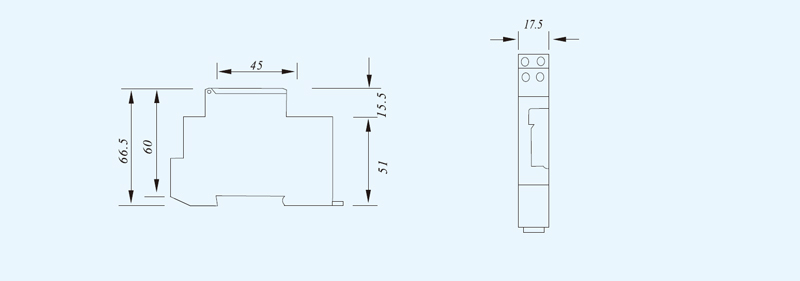

Dimensions
