| Categories | Voltage Control Relay |
| Rated supply voltage | AC220V. AC230. AC240V. AC380V. AC400V. AC415V |
| Rated supply frequency | 50Hz/60Hz |
| Over- voltage threshold range | (1.05~1.30)xUe |
| Under -voltage threshold range | (0.70~0.95)xUe |
| Unbalance threshold range | 5%~ 15% |
| Action delay range | 0.1s~10s |
| Phase failure and phase sequence | ≤1s |
| Voltage measurement error | ≤1% |
| Rated insulation voltage | 415V |
| Contact configuration capacity(A) | 10A |
Function
Applications
Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection of over-voltage, under voltage, phase failure, phase sequence and phase unbalance. When the power supply is abnormal, turn off power supply to protect the equipment.
Features
Built-in microprocessor, true RMS measurement, measurement accuracy ≤1%.50/60Hz universal, knob setting, LED indicator shows working status. With N-phase phase failure protection, DIN rail mounting.
| Rated supply voltage | AC220V、AC230、AC240V. AC380V. AC400V、AC415V |
| Rated supply frequency | 50Hz/60Hz |
| Over-voltage threshold range | (1.05~1.30)xUe |
| Under voltage threshold range | (0.70~0.95)xUe |
| Unbalance threshold range | 5%~ 15% |
| Action delay range | 0.1s~10s |
| Phase failure and phase sequence | ≤1s |
| Voltage measurement error | ≤1% (Entire setting range) |
| Delay error | ±10%+0.1s |
| Konb stting accuracy | 1% scale value |
| Rated insulation voltage | 415V |
| Contact configuration capacity(A) | 10A |
| IP Class | IP 20 |
| Class of pllution | Ⅲ |
| Electrical Life | 105 |
| Mechanical life | 106 |
| Altitude | ≤2000m |
| Allowable relative humidity | ≤50% ( 40°C ) (No condensation ) |
| Use category | AC-15 |
| Short circuit protector type | RT36-00 5A |
| Contact capacity | Ue/le : 240V/1.5A,415V/0.95A |
| Output type | 1 C/O |
| DIN rail Standard | width:35mm ( IEC/EN60715 ) |

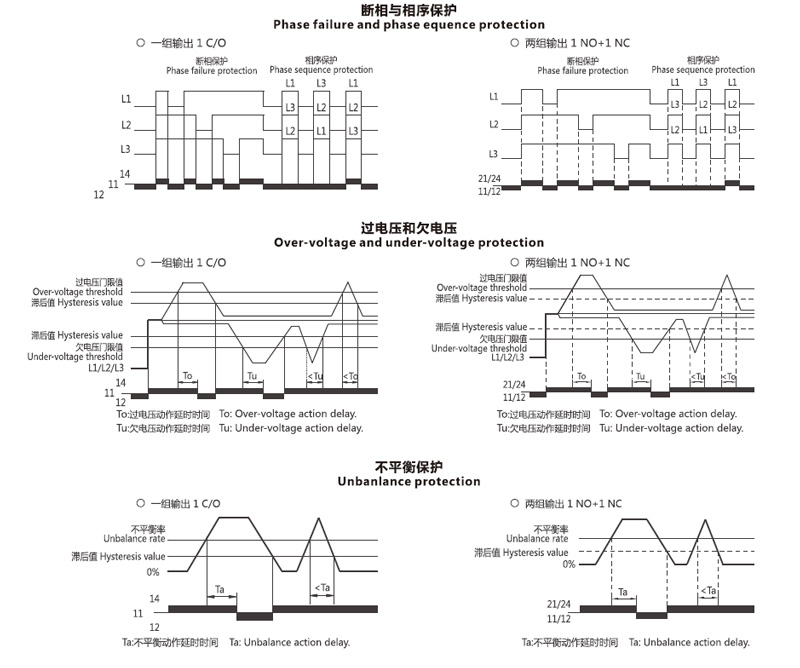

Function Diagram

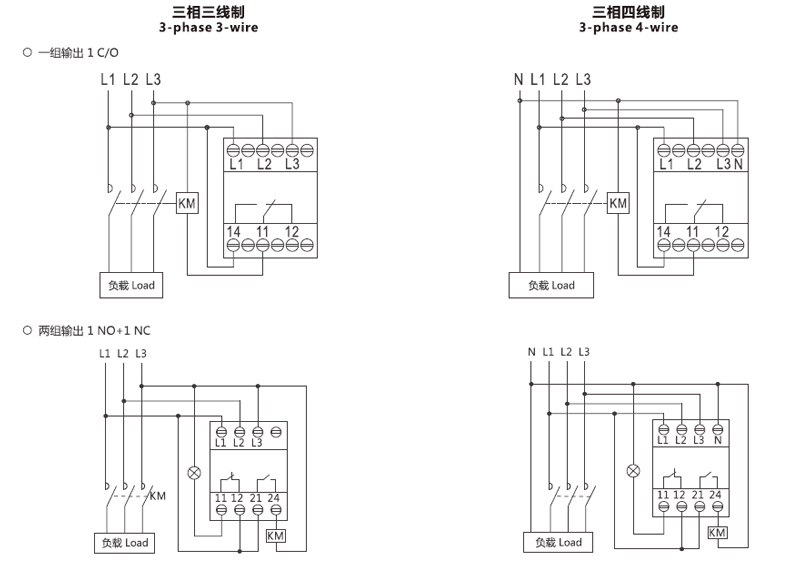

Wiring Diagram

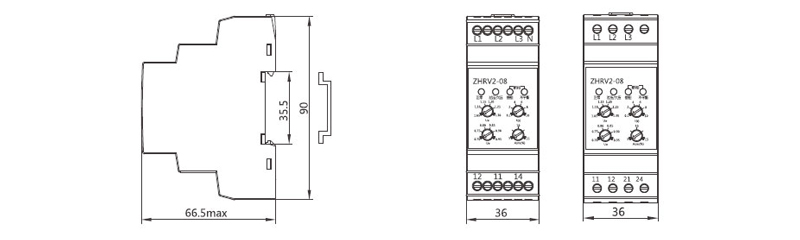

Dimensions
Video
