ZHRV2-10 Voltage control relay

ZHRV2-10 Voltage control relay
ZHRV2-10 Voltage control relay

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.



Categories Voltage Control Relay
Rated supply voltage AC220V. AC230. AC240V. AC380V. AC400V. AC415V
Rated supply frequency 50Hz/60Hz
Over- voltage threshold range (1.05~1.30)xUe
Under -voltage threshold range (0.70~0.95)xUe
Unbalance threshold range 5%~ 15%
Action delay range 0.1s~10s
Phase failure and phase sequence ≤1s
Voltage measurement error ≤1%
Rated insulation voltage 415V
Contact configuration capacity(A) 10A
Function

Applications

Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection  of  over-voltage,  under  voltage, phase failure, phase sequence and phase unbalance. When the power  supply is abnormal, turn off power supply to protect the equipment.

Features

Built-in microprocessor, true RMS measurement, measurement accuracy ≤1%.50/60Hz universal, knob setting, LED indicator shows working status. With N-phase phase failure protection, DIN rail mounting.

Rated supply voltage AC220V、AC230、AC240V. AC380V. AC400V、AC415V
Rated supply frequency 50Hz/60Hz
Over-voltage threshold range (1.05~1.30)xUe
Under voltage threshold range (0.70~0.95)xUe
Unbalance threshold range 5%~ 15%
Action delay range 0.1s~10s
Phase failure and phase sequence ≤1s
Voltage measurement error ≤1% (Entire setting range)
Delay error ±10%+0.1s
Konb stting accuracy 1% scale value
Rated insulation voltage 415V
Contact configuration capacity(A) 10A
IP Class IP 20
Class of pllution
Electrical Life 105
Mechanical life 106
Altitude ≤2000m
Allowable relative humidity ≤50% ( 40°C ) (No condensation )
Use category AC-15
Short circuit protector type RT36-00 5A
Contact capacity Ue/le : 240V/1.5A,415V/0.95A
Output type 1 C/O
DIN rail Standard width):5mm ( IEC/EN60715 )

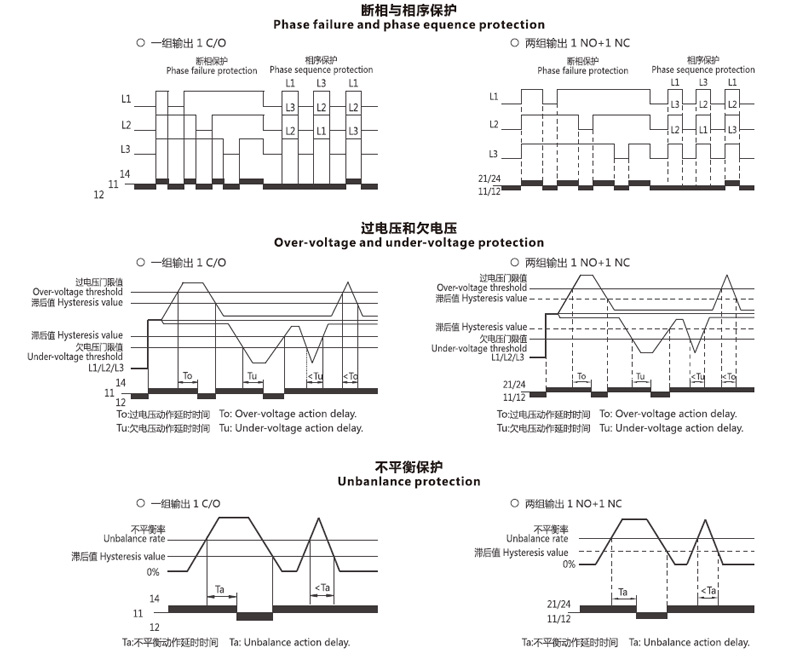

Function Diagram



Phase failure and phase equence protection,Over-voltage and under-voltage protection,Unbanlance protection

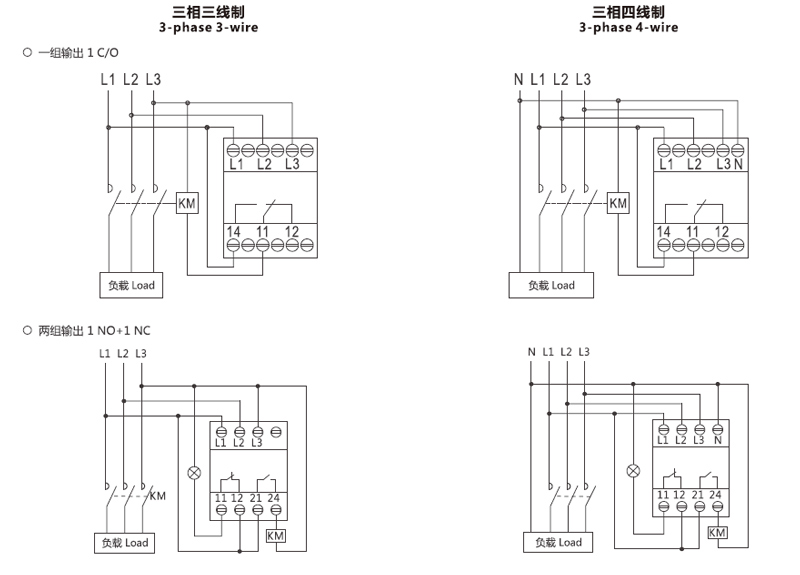

Wiring Diagram
3-phase,3-wire.3-phase 4-wire

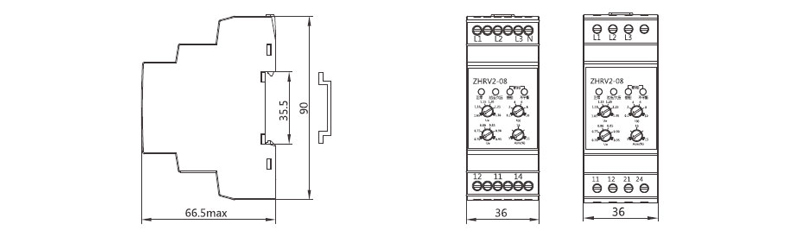

Dimensions
Dimensions
