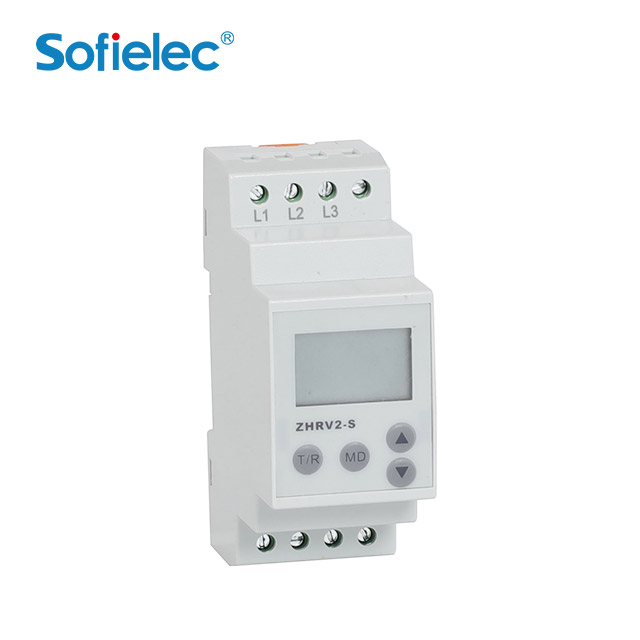

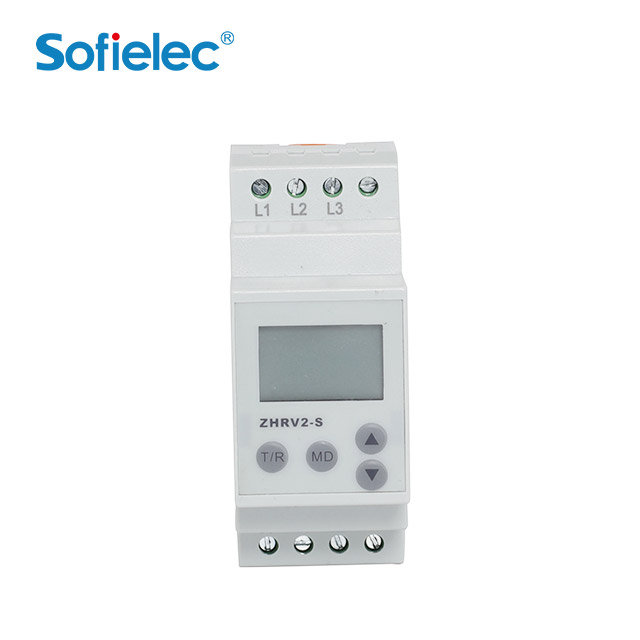

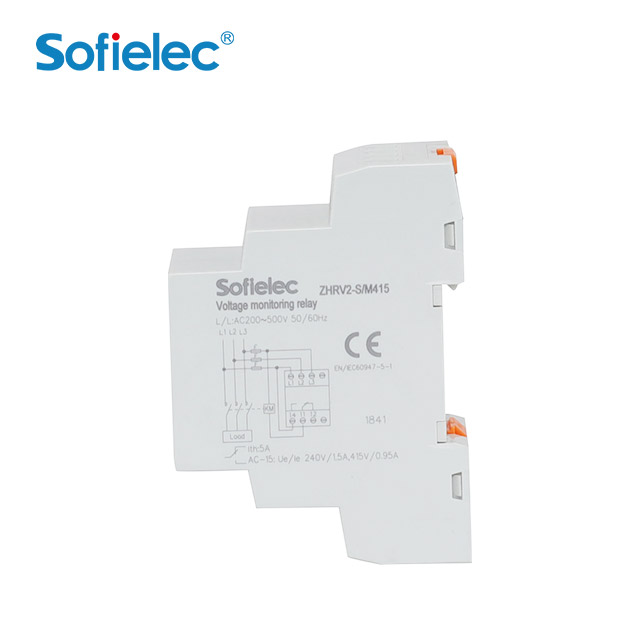

ZHRV2-S Voltage control relay

ZHRV2-S Voltage control relay
ZHRV2-S Voltage control relay
ZHRV2-S Voltage control relay
ZHRV2-S Voltage control relay
ZHRV2-S Voltage control relay

Welcome to enquire to us by formal email, so that we can receive your information smoothly and reply you promptly. Thank you.

Categories Voltage Control Relay
Rated control supply voltage AC220V. AC380V DC12V DC24V~240V 50/60Hz
Rated power consumption AC:≤1.5VA DC:≤1W
Delay range 0.1s~100h
Setting accuracy ≤5%
Repeat acuracy ≤0.2%
Repeat power-on interval ≥200ms
Atitude ≤2000m
Contact configuration capacity(A) 1C/O,2C/O l6A, 1C/O+1 intant c/O, 3C/O 8A
IP Class IP 20
Contact capacity 1 C/O, 2 C/O, 1C/O+1 instant C/O, 3C/O
Function



Applications

Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection  of  over-voltage,  under  voltage, phase failure, phase sequence and phase unbalance. When the power  supply is abnormal, turn off power supply to protect the equipment.

Features

Built-in microprocessors, true RMS voltage measurement, voltage measurement accuracy 5 1%. Measuring frequency 45Hz~65Hz, button setting, LCD display voltage and fault information, protection can be turned on or off. Check phase voltage value by button, with N-phase phase failureprotection. DIN rail mounting.

Rated supply voltage DC12V、AC/DC 24V~240V 50/60Hz
Rated power consumption ≤1W
Delay range 0.1s ~ 100h multi-range adjustment
Setting accuracy ≤5%
Repeat accuracy ≤0.2%
Repeat power-on interval ≥200ms
Electrical Life 105
Mechanical life 106
Altitude ≤2000m
Contact configuration capacity(A) 1C/O:16A ,2C/O:16A,3C/O:8A,2C/0+1 instant C/O:8A+ 16A
IP Class IP 20
Class of pllution
Use category AC-15
Contact capacity Ue/le AC240V/1.5A
Contact capacity 1C/0 ,2C/O,3C/O,2C/0+1 instant C/O
DIN rail Standard width 35mm(IEC/EN60715)
Allowable relative humidity ≤50%(40°C) (No condensation )
Short circuit protector type RT36-00 5A

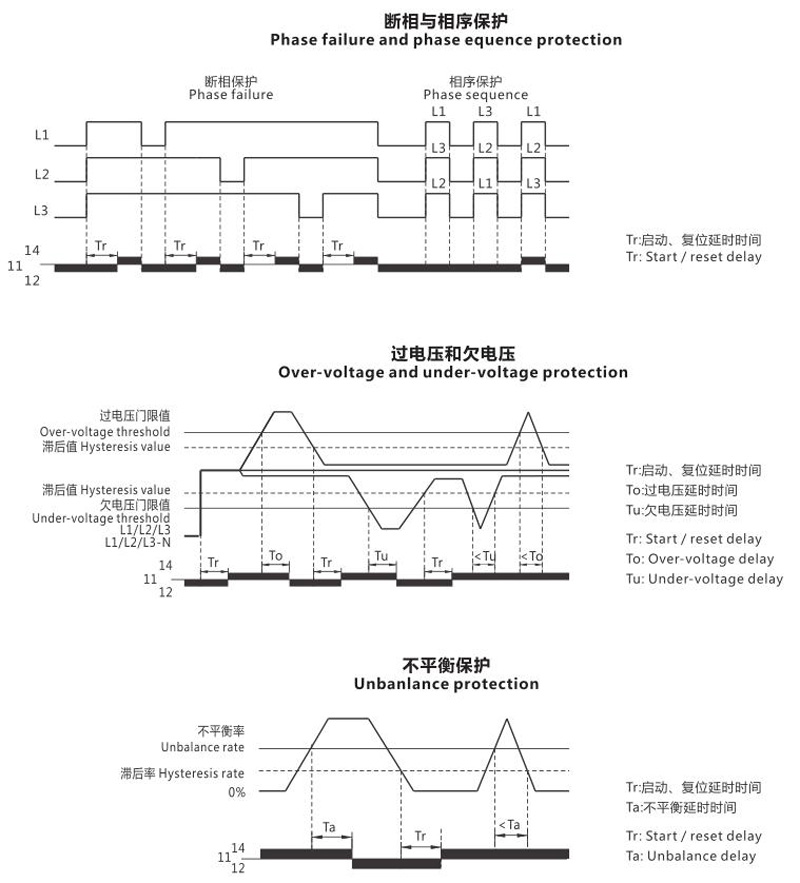

Function Diagram



Phase failure and phase equence protection

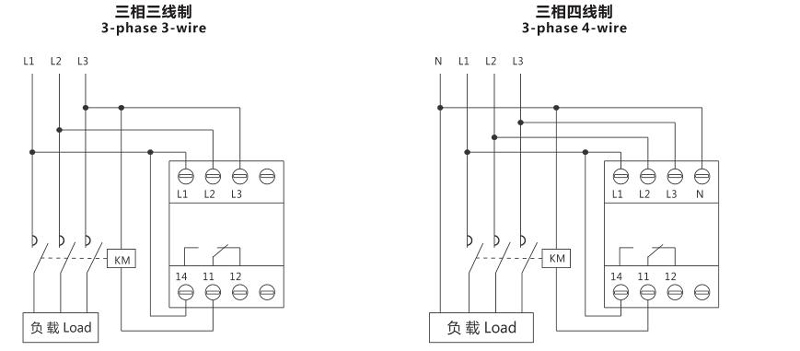

Wiring Diagram
3-phase 3-wire,3-phase 4-wire

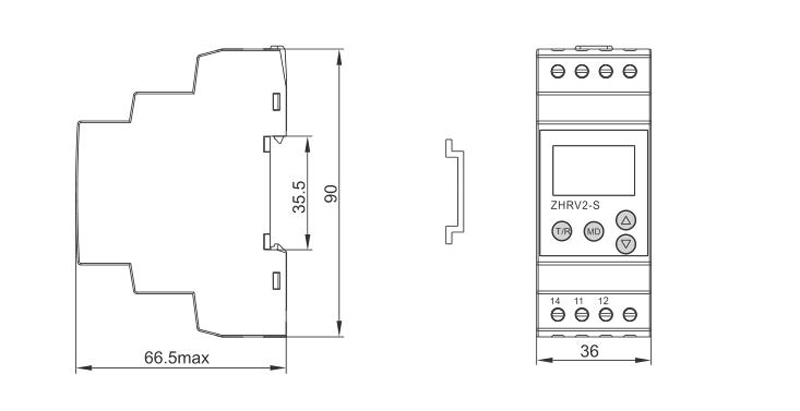

Dimensions
Dimensions
